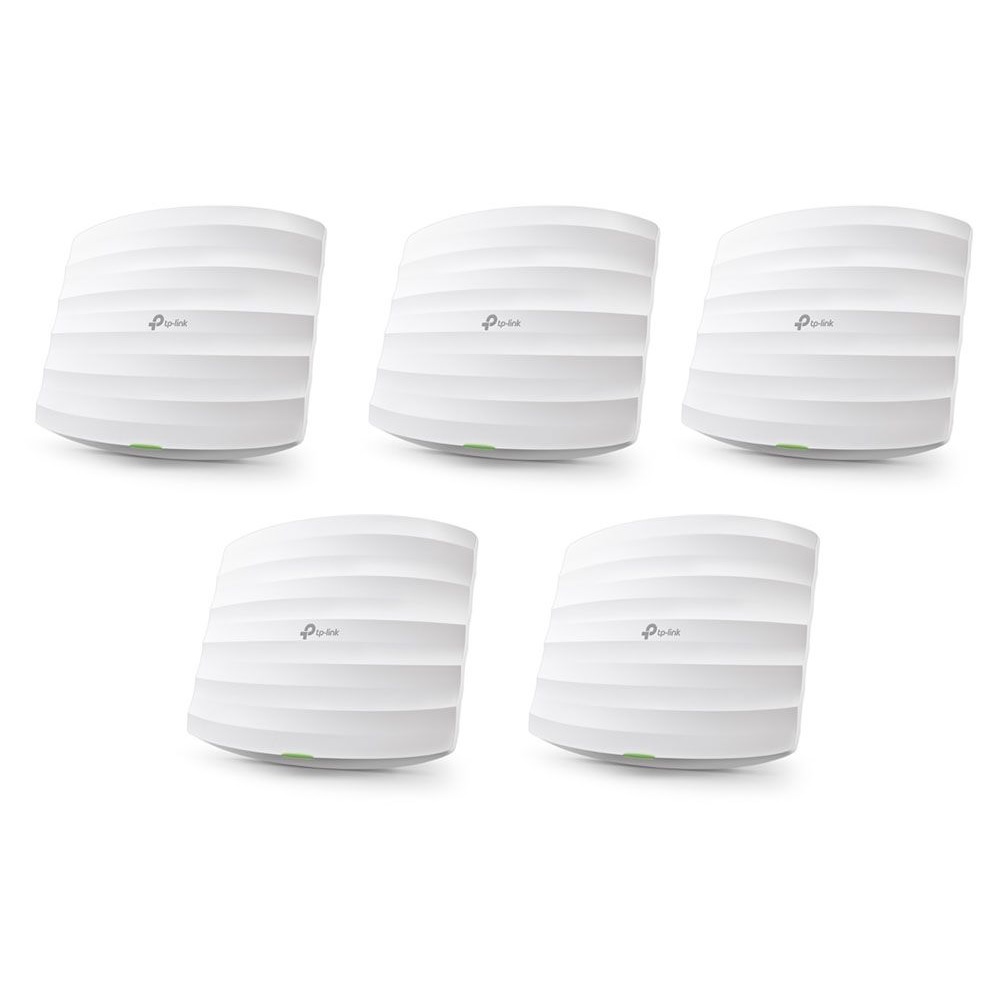

TP-LINK AC1350 WIRELESS MU-MIMO GIGABIT CEILING MOUNT ACCESS POINT EAP225

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)△ for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

HARDWARE FEATURES
Interface: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
Physical Security Lock: Yes
Button: Reset
Power Supply: • 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: EU: 9.7W
US: 12.1W
Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna: 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage: 115㎡(1250 ft²)§
Concurrent Clients: 220+**
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps
Wireless Functions: • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band,7 for 5GHz band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming(802.11k/v/r)*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security: • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power: • CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)

Management Features
Omada App: Yes
Centralized Management: • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Require the use of an Omada controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS
Certification CE, FCC, RoHS

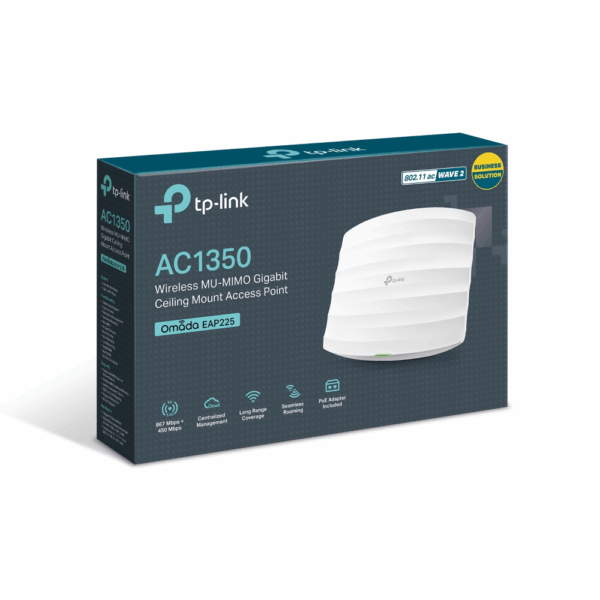

Package Content: • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment: • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
