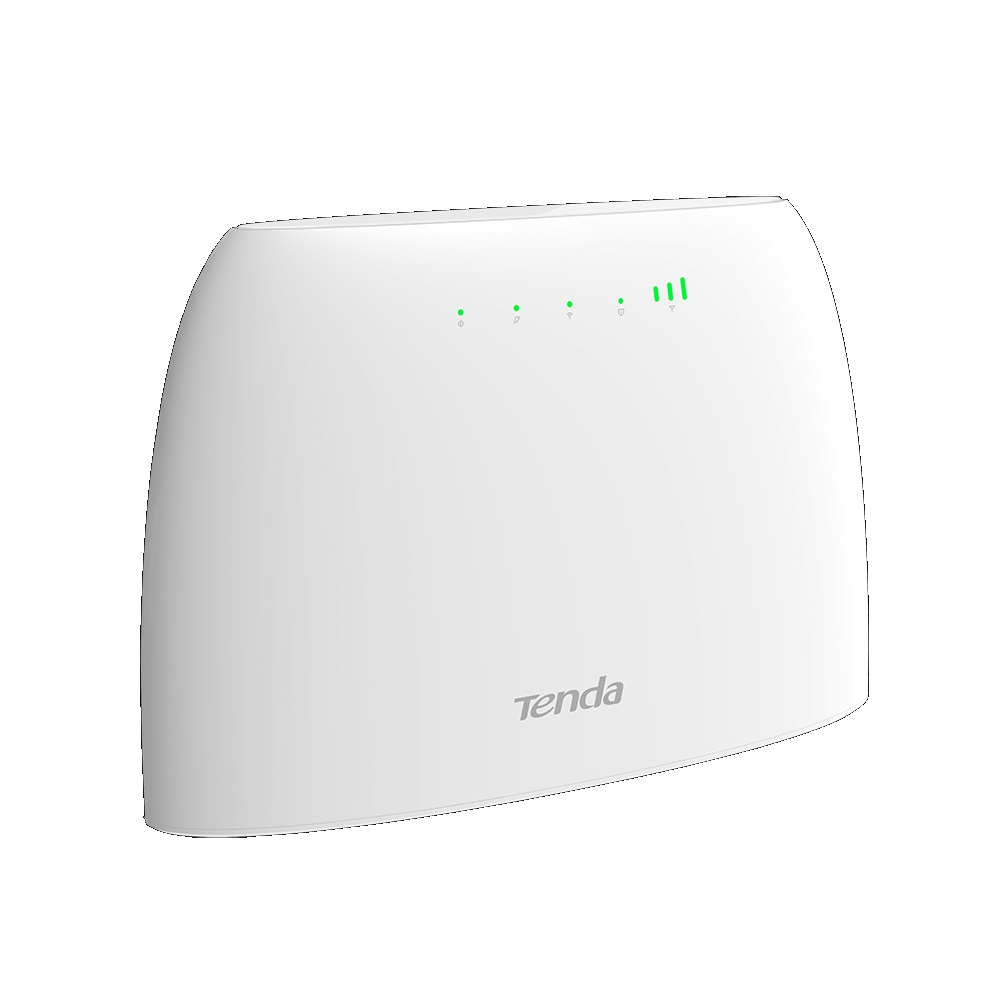

TENDA 4G03 N300 WI-FI 4G LTE ROUTER

TENDA 4G03 N300 WI-FI 4G LTE ROUTER

Hardware
4G Cartgory:
LTE CAT.4

4G/3G standards:
FDD-LTE,TDD-LTE,WCDMA

Working band:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
WCDMA: B1/B5/B8

Max 4G speed:
DL:150Mbps UL:50Mbps

Wi-Fi standards:
802.11b/g/n

Wi-Fi frequency:
2.4GHz

Wi-Fi speed:
300Mbps

Wi-Fi transmit Power:
up to 20dBm

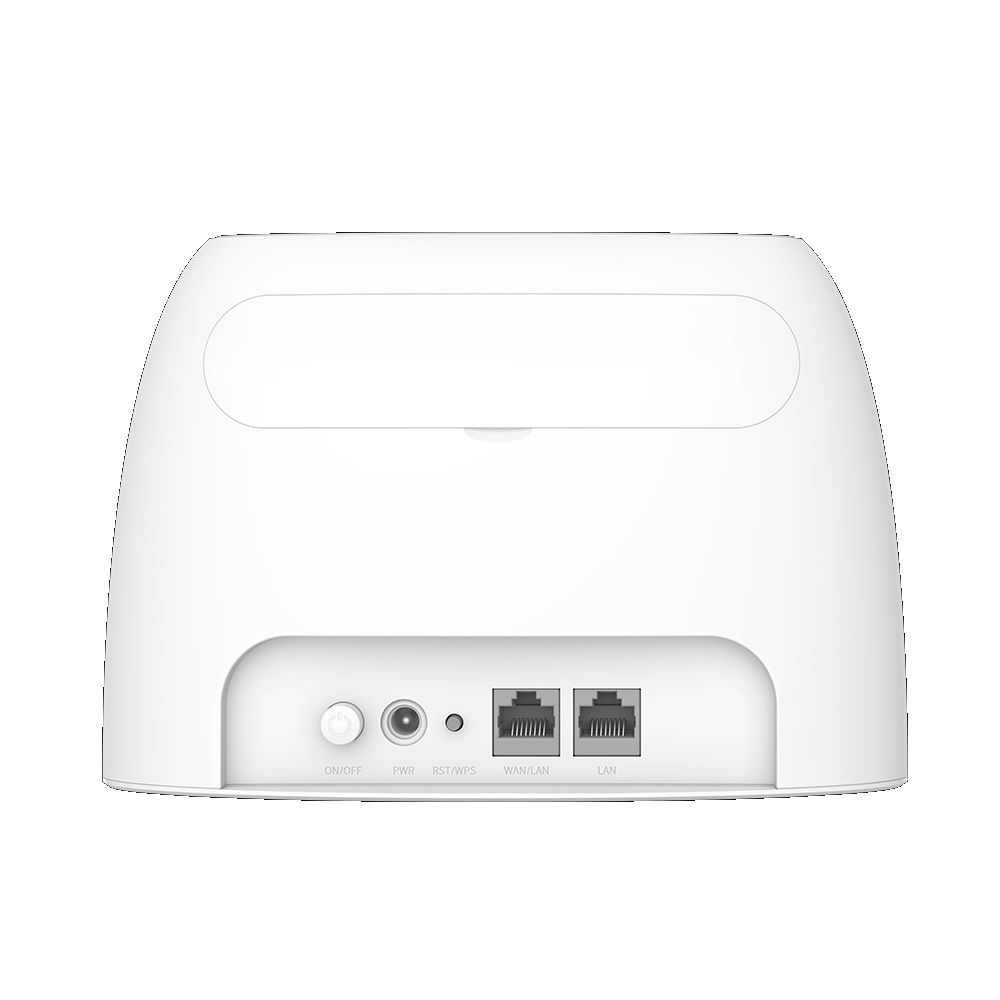

Interface:
1 × 10/100 Mbps LAN/WAN Port
1 × 10/100 Mbps LAN Port
1 × 2FF SIM Card Slot

Button:
Power on/off
WPS/Reset

Antennas:
2 Internal 4G/3G Antennas
2 Internal Wi-Fi Antennas

LED indicators:
Power
Wi-Fi
LAN
Internet
4G/3G Signal strength(3 Bars)

Dimensions（L*W*H）:
185*126*60mm

Weight:
About 256g

Power supply:
Power adapter:Input power AC 100V-240V 50/60Hz
Output power:DC 9V==1A

Software
WAN Type:
4G/3G or Wired
Support Failover

Wi-Fi functions:
Wi-Fi name & Wi-Fi key
Channel & Bandwidth
Guest Network
Wi-Fi schedule
Wireless repeating
Transmit power
WPS

Wi-Fi security:
WPA-PSK, WPA2-PSK, WPA/WPA2

Software features:
APP/WEB
DHCP Server
VPN(PPTP Client/L2TP Client/PPTP Server)
Firewall
QOS
Upgrade firmware from local or OTA
IPV4/IPV6

Certifications
Certifications
CE
ROHS
SIRIM

Working Environment
Temperature:
Operating Temperature : 0℃~40℃
Storage Temperature : -40℃ ~70℃

Humidity:
Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
